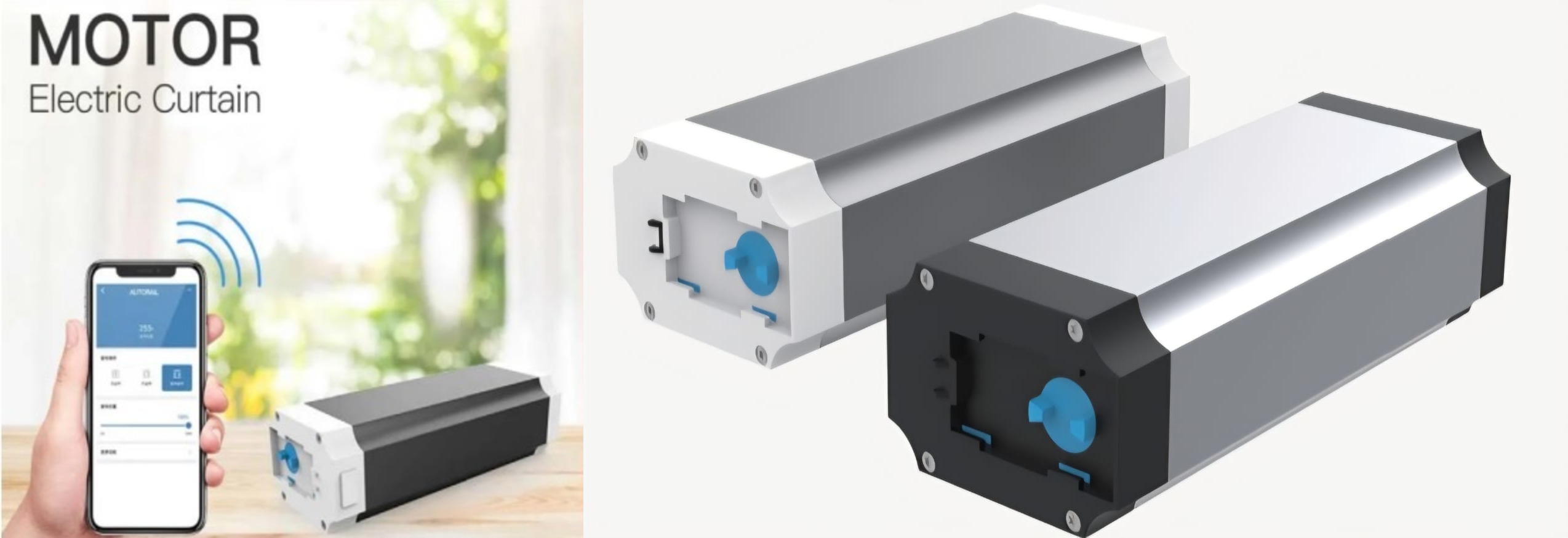

Intelligent Curtain Motor
Product Description
Unitek Drapery motor by Radio Frequency 433MHz remote controlling and switch controlling is designed to support heavy duty curtains for homes, hotels and small stage.
The controlling by smart home automation system could be by RS485, zigbee, zwave, dry contact.
It would be a highly pleasant experiences for you to use the Unitek curtain motor with its automated limit stop, smart and super quiet, heavy duty load and stable performance.
Application Focus: Home, Villa, Hotel, Stage, Hall etc.
Product Engineering Features
- Completely new compact and fashion design.
- Soft start and stop.
- Touch start.
- Manual operating capability.
- High quality component and PCB inside to guarantee long duration.
- Anti-interference remote controlling.
- Super quiet performance: Noise level as low as 27dBA only.
- Motor Speed setting dynamically configurable by users.
- AC100-240V working voltage framework functional worldwide.
Operational Highlights
- Two kinds of Motors available: with adjustable speed and non-speed adjustable configurations.
- Auto Start triggered instantly when pulling the curtain fabric manually.
- Robust capacity allowing execution as a small stage curtain motor.
- Flexible architecture supporting Dry Contact control, RF remote, or 485 operational mode networks.
- The hotel automation systems can realize the opening of the card curtain automatically.
- Low noise execution running hand-in-hand with large output torque.
- Long life drive unit integration fitted with heavy-duty structural bearing components.
- Highly stable, reliable and durable over long-term operations.
Motor Parameters
| Parameter Criteria | Specification Standard Data |
|---|---|
| Rated Voltage | AC 100-240V, 50/60Hz |
| Current | 0.3A |
| Power Value | 80W |
| Torque Power | 2.5N-m |
| Maximum Load Capacity | 100kg |
| Open Travel Speed | 18cm/s |
| Electrical Noise Threshold | 35dB(A) (Operational noise can reach as low as 27dBA under single specific applications) |
| Protection Class Level | IP41 |
| Power Cable Layouts | 3 wires or 5 wires options |
| Physical Dimension | 210mm × 86mm × 60mm |
Control Method Matrix
| Index | Control Interface | System Implementation & Specifications |
|---|---|---|
| 1 | RF Remote | Fitted with 63 tracking channels; controls up to 63 target motors independently. Device Dimensions: 125mm × 44mm × 10mm. Running on DC 3V Battery supply. Bundled with custom remote wall mount holder. |
| 2 | Button Switch | Features 2 channels; layout manages up to 2 target motors. Device Dimensions: 86mm × 86mm × 11mm. Hardware electrical requirements: Input & Output AC 100-240V. |
| 3 | Voice Control | Supports hands-free automation voice activation via integrated smart devices (Works with Hey Google / Works with Alexa framework ecosystems). |
| 4 | Tuya APP Control | Enables interactive visual settings, linking automation setups across system spaces (Tuya App / Smart Life / Miia App ecosystems). |
| 5 | Timed Scheduling | Enables direct automation profiles allowing users to easily create customized start and stop calendar times on the Tuya application. |
| 6 | Manual Control | Mechanical fallback design allowing users to smoothly open or close the curtain hanging tracks manually when system power is off. |

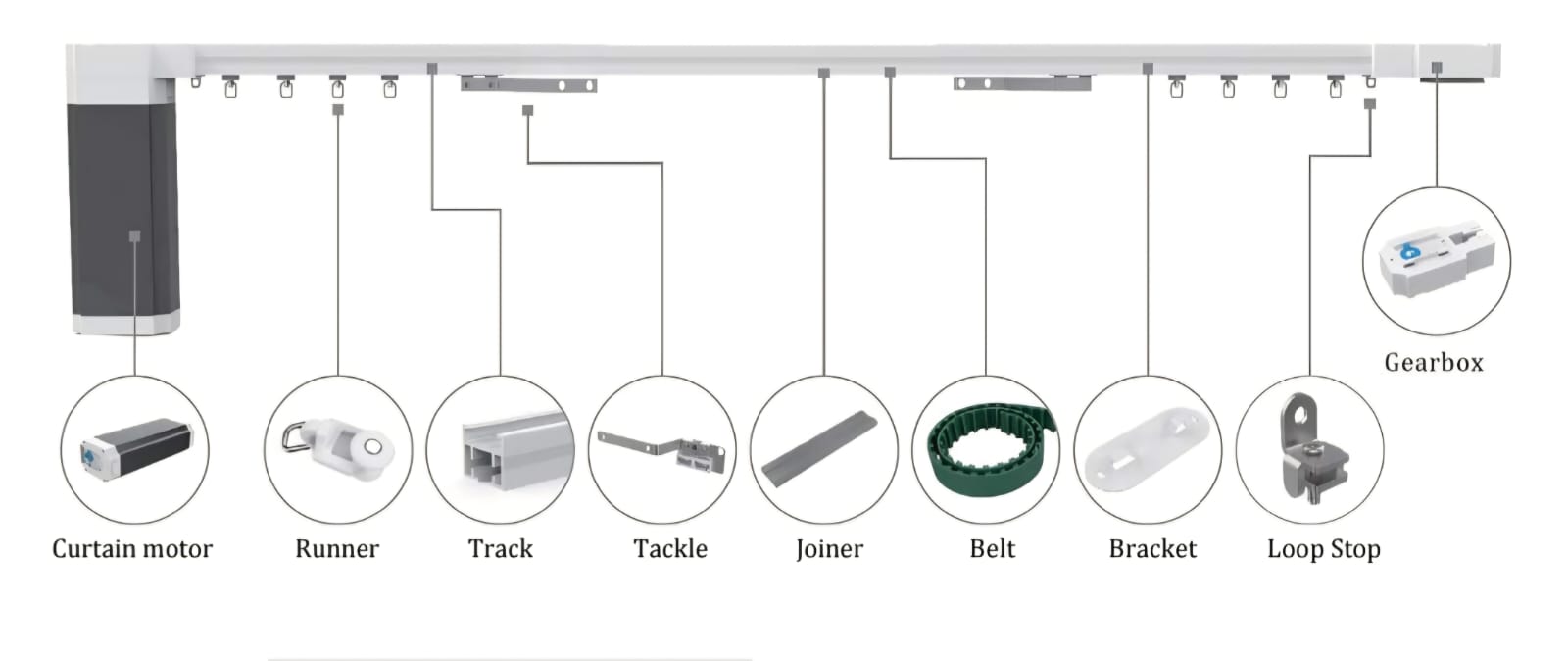

System Infrastructure Component Track Breakdown
The Differences Between Flat Curtains and S-Wave Curtains
S-Wave Curtains
Equal pleat spacing configuration yielding a fuller, significantly more architectural and shapely visual execution look along long track lengths.
Regular Curtain
Fixed non-adjustable regular pleats structural layout, resulting in a loose presentation draping styling inferior to wave curtain designs.
Silent Operation & Timed Intelligence
Track your lifestyle habits and program scheduled automated start and stop track times easily. The specialized engineering keeps operating noise metrics exceptionally low.

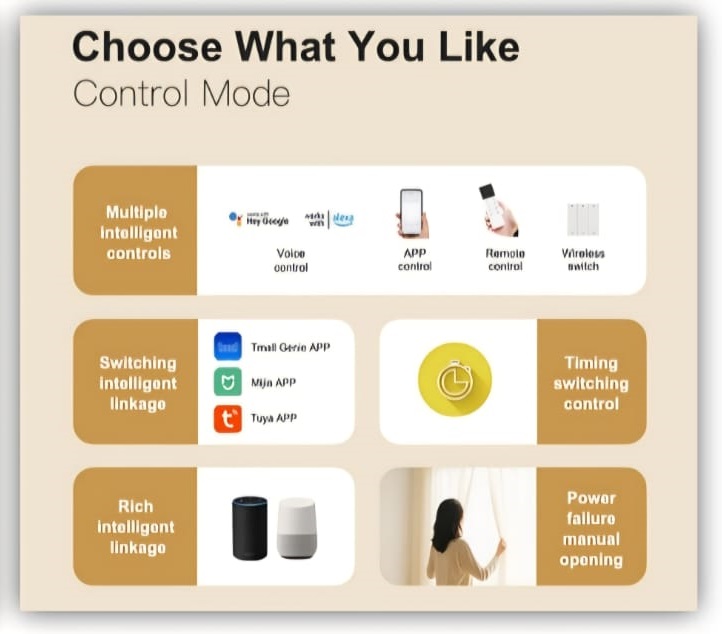

Custom Control Settings
Choose what you like best from highly accessible system choices: Multiple Intelligent Controls (Voice control, App control, Remote control, Wireless switch options) linked with powerful intelligent scheduling and power failure mechanical manual openings.
